Multiple Room / Zone Water Underfloor Heating Kit

Be the first to review this product

Quick Overview

All UFH plumbing needs except the controller.

Availability: In stock

Regular Price: £599.99

Special Price £499.99

* Required Fields

Regular Price: £599.99

Special Price £499.99

Details



Additional Listing for Complete Kit:



Adds Acturators Cap for Manifolds, Wiring Centre and Thermostats, to control zones seperately, visit below link:



FULL Water Underfloor Heating Multi Zone/Room KIT - Wet 5 Layers Pipe 40-240 SQM​​​​​​​

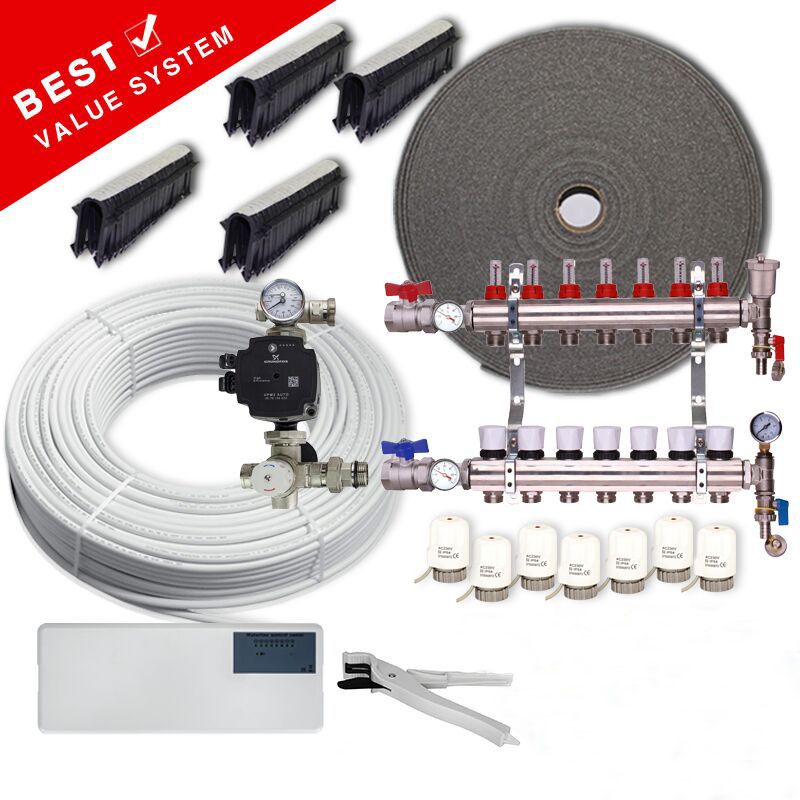

What is included in kit:

* Complete Manifold Kit with flow metres, temperature gauge and Pressure Gauge, pre-mounted onto installation bracket.
* Grundfos Pump ('A' rated, latest model UPM3 High Efficiency Pump in black colour) with Temperature Control Mixing Unit.
* 16mm - 5 Multilayers Pipe (50 years warranty)
* Edge insulation to be used around the edge of room.
* Pipe Cutter.
* Pipe Staple Clips, compatible with tracker gun or use manually to clip.
* Euroconus Connectors to connect pipe to manifold.
* Temperature Gauge and Pressure Gauge comes with the Manifolds.

(16mm pipe fittings by default)



 Use the table to see what is included in your kit

Area Size Manifold Port(s) Thermostatic Control Grundfos Pump No. of Connectors Pipe Length  Pipe Clips Edge Insulation Cutter
40m² 2 yes yes 4 200m 400 50m yes
60m² 3 yes yes 6 300m 600 50m yes
80m² 4 yes yes 8 400m 800 75m yes
100m² 5 yes yes 10 500m 1000 100m yes
120m² 6 yes yes 12 600m 1200 125m yes
140m² 7 yes yes 14 700m 1400 150m yes
160m² 8 yes yes 16 800m 1600 150m yes
180m² 9 yes yes 18 900m 1800 175m yes
200m² 10 yes yes 20 1000m 2000 200m yes
220m² 11 yes yes 22 1100m 2200 225m yes
240m² 12 yes yes 24 1200m 2400 250m yes





 Key Features

  • Supplied pre-mounted on installation brackets
  • Connections are euroconus and a range of fittings are available to suit most UK pipe sizes
  • Usual working temperature 82 C
  • Max working temperature 105 C
  • Max working pressure 3 bar
  • Max test pressure 10 bar
  • Easy Fitting
  • Manufactured to highest standards to meet all UK and EU standards
  • Pipe with 50 years warranty, WRAS approved products.



Pump Pack - Grundfos Pump with Mixer Blending Valve

  • Grundfos A-rated Pump (brand new, OEM 2017 latest model UPM3 Black Pump), EuP/ErP Ready.
  • Mixer Set Blending Valve
  • Thermostatic control the flow temperature of water to the underfloor heating pipe.
  • Temperature range: 35C - 65C
  • Max working pressure: 10 bar
  • Compression type connections for ease of installation
