Low profile - Multiple Room / Zone Water Underfloor Heating Kit - 12mm - 5 Layers Pipe

All UFH plumbing needs except the controller.

As low as £499.99 £416.66
Availability: In stock

(Picture is for illustration only, Grundfos pump is the black colour UPM3 High Efficiency Pump)

To control zones seperately, visit below link:

Adds Actuator, Wiring Centre and Thermostats with your order.

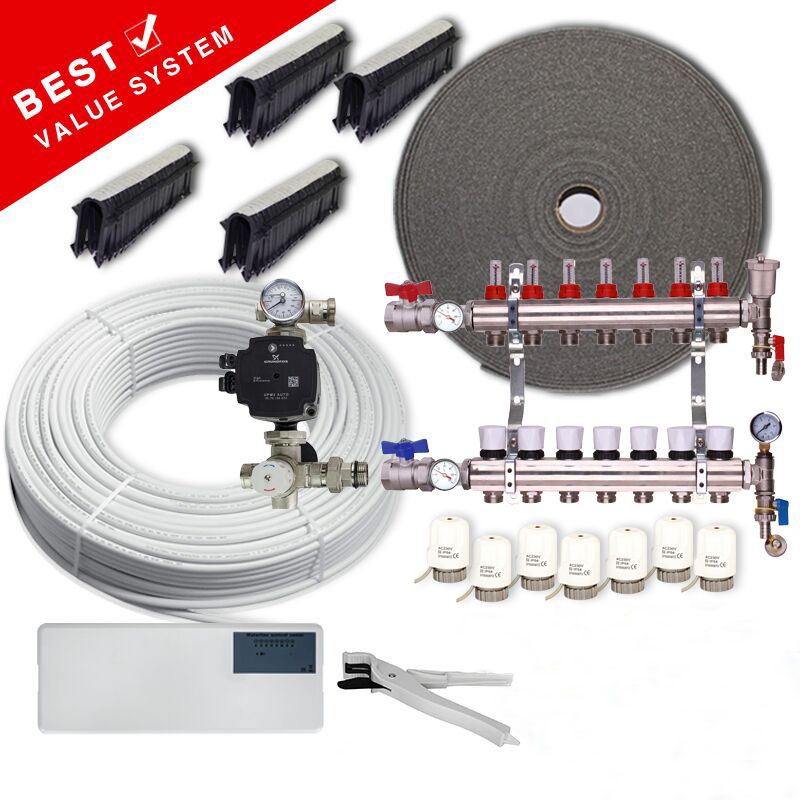

What is included in kit:

* Complete Manifold Kit with flow metres, temperature gauge and Pressure Gauge, pre-mounted onto installation bracket.
* Grundfos Pump ('A' rated, latest model UPM3 High Efficiency Pump in black colour) with Temperature Control Mixing Unit.

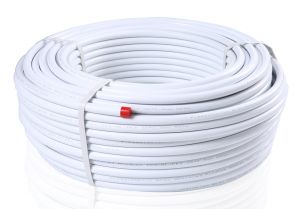

* 12mm - 5 Multilayers Pipe (50 years warranty)
* Edge insulation to be used around the edge of room.
* Pipe Cutter.
* Pipe Staple Clips, compatible with tracker gun or use manually to clip.
* Euroconus Connectors to connect the pipe to manifold.
* Temperature Gauge and Pressure Gauge comes with the Manifolds.

(12mm pipe fittings by default)


 Use the table to see what is included in your kit

Area Size Manifold Port(s) Thermostatic Control Grundfos Pump No. of Connectors Pipe Length  Pipe Clips Edge Insulation Cutter
20m² 2 yes yes 4 160m 320 50m yes
30m² 3 yes yes 6 240m 480 50m yes
40m² 4 yes yes 8 320m 640 50m yes
50m² 5 yes yes 10 400m 800 100m yes
60m² 6 yes yes 12 480m 960 100m yes
70m² 7 yes yes 14 560m 1120 100m yes
80m² 8 yes yes 16 640m 1280 100m yes
90m² 9 yes yes 18 720m 1440 100m yes
100m² 10 yes yes 20 800m 1600 150m yes
110m² 11 yes yes 22 880m 1760 150m yes
120m² 12 yes yes 24 960m 2400 150m yes



 Key Features

  • Supplied pre-mounted on installation brackets
  • Connections are euroconus and a range of fittings are available to suit most UK pipe sizes
  • Usual working temperature 82 C
  • Max working temperature 105 C
  • Max working pressure 3 bar
  • Max test pressure 10 bar
  • Easy Fitting
  • Manufactured to highest standards to meet all UK and EU standards
  • Pipe with 50 years warranty, WRAS approved products.


Pump Pack - Grundfos Pump with Mixer Blending Valve

  • Grundfos A-rated Pump (latest Grundfos High Efficiency underfloor heating model UPM3 Black Pump), EuP/ErP Ready.
  • Mixer Set Blending Valve
  • Thermostatic control the flow temperature of water to the underfloor heating pipe.
  • Temperature range: 35C - 65C
  • Max working pressure: 10 bar
  • Compression type connections for ease of installation
  • UK Version, 230V
  • Pump comes with 2 year manufacturer warranty
