Underfloor Heating Low Profile Plastic Castellated Egg Crate Floor Panel for 15mm,16mm,17mm Pipe (Min 60 Panels) - EPS 20MM
Castellated Egg Crate Floor Panel for 12mm Pipe (Min 60 Panels)
1250mm x 850mm x 15mm
(Min 60 panels)
PALLET ONLY DELIVERY 1 - 3 DAYs LEADTIME

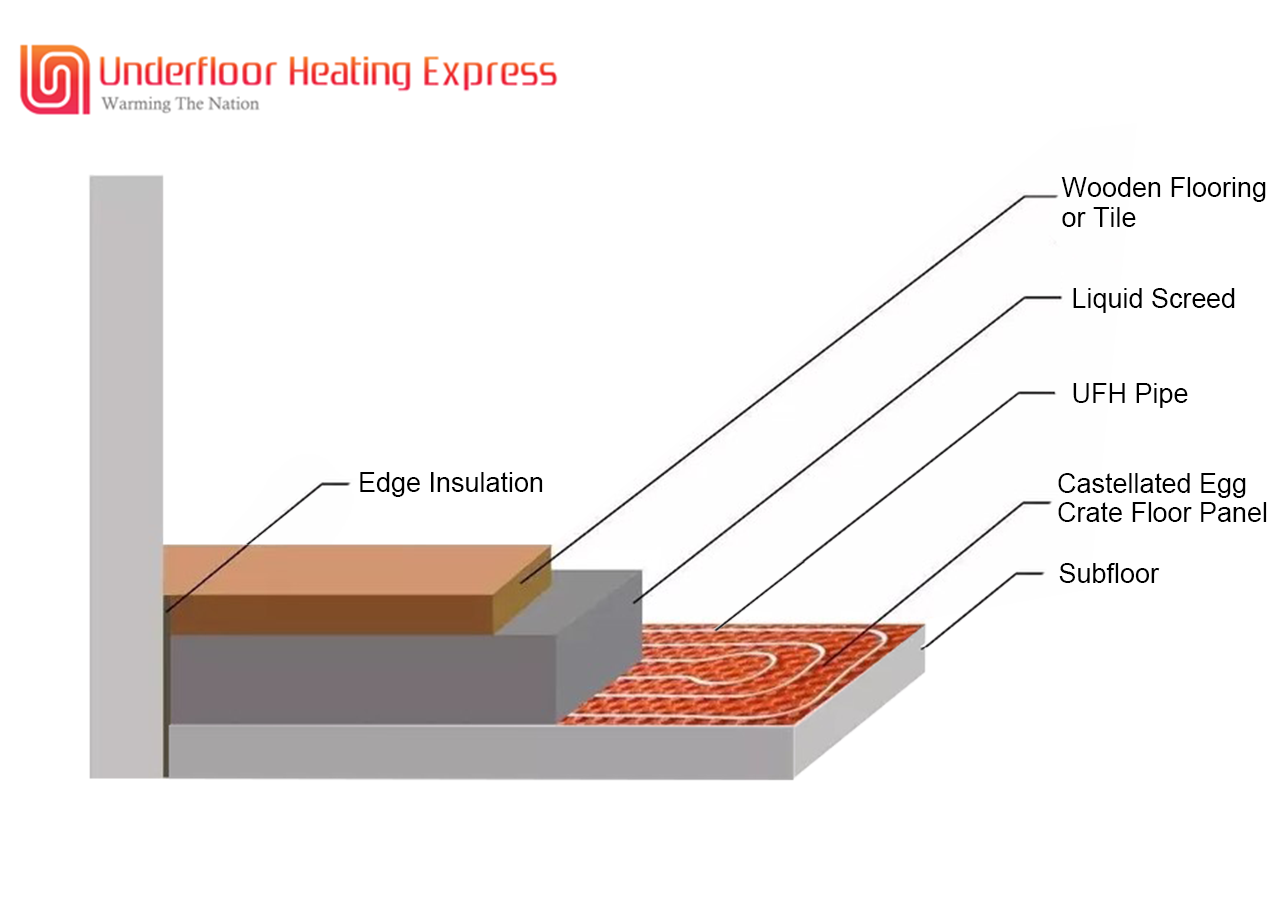

The Castellated floor panels allow for a fast installation together with the accurate fixing of underfloor heating pipes. The design allows the pipe to be held securely in place by the castellated knobs. It also acts as a pipe fixing template ensuring accurate spacing of pipes allowing an even heat distribution. They are lightweight and can be easily cut to size to fit any room shape. The underfloor heating pipes can be fitted and securely held in position before and during the laying of the floor screed.
The trays are provided in black and can be neatly overlapped to create a fully interlocking continuous grid floor panel ready for the pipes which can be fixed at 100, 150, 200 and 250mm pipe centres.
Features and Benefits
• Total size 1250mm x 850mm x 15mm
• Suitable for 12mm pipes
• Pipe Centres can be at 100mm, 150mm, 200mm and 250 mm
• Easy to install • Made from Recycled High Impact Polystyrene
• Minimum amount of waste
• Eliminates pipe contact with insulation
• Each panel will cover approx 1 square metre
• Colour - black
The minimum quantity available is 60, as they are delivered on a pallet(s). Please note you must be able to receive them in this way when delivered.
