To help our customers understand how to install our single zone manifold and our multi port manifold we have created these simple diagrams that will speed up the installation time. If you still have any queries, feel free to contact us.

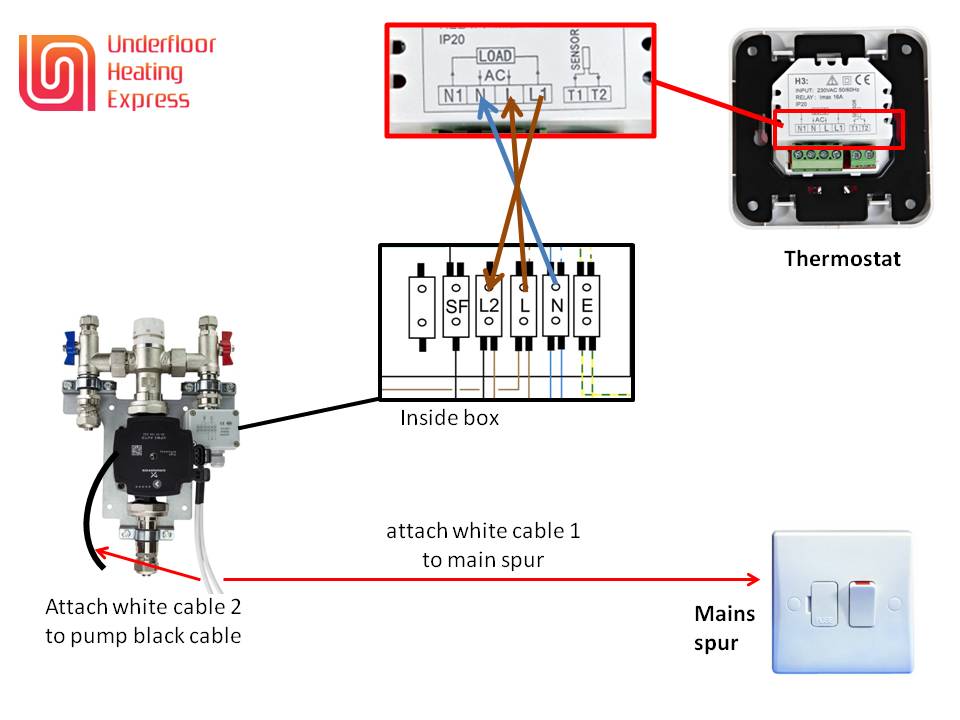

Single Zone Manifold Installation Diagram

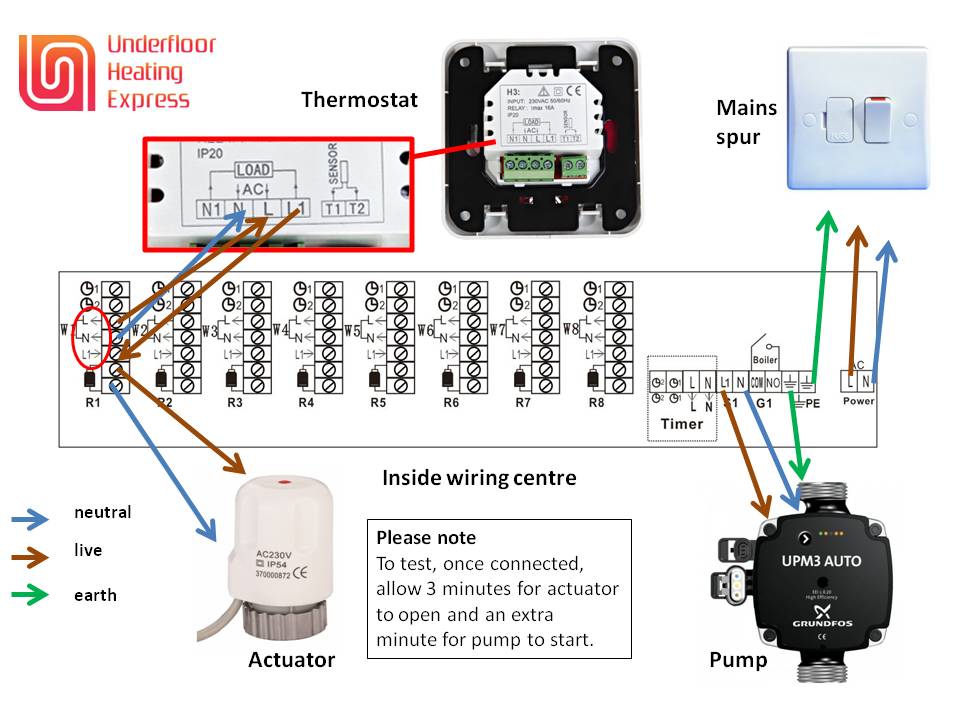

Multi Zone Manifold Installation Diagram
