25MM Solid Floor Routed Panel for 16 / 15 mm Underfloor Heating Pipe – 200mm Centre

(Minimum Order 50 boards)

BASED ON QUANTITY OF BOARDS, YOUR ORDER WILL ARRIVE EITHER BY PARCEL OR PALLETISED. IF PALLETISED. DELIVERY IS USUALLY 1-2 WORKING DAYS.

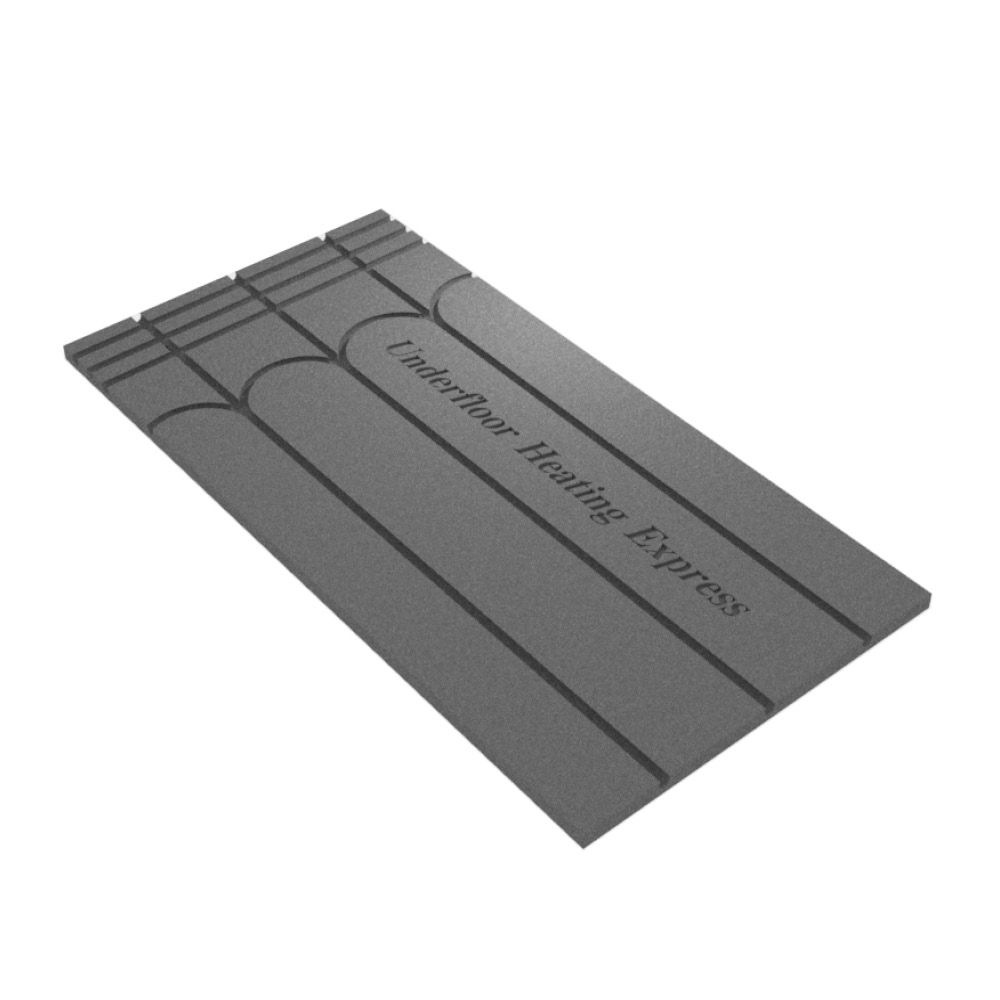

XPS 25mm Premium Solid Floor Routed Panels

Ideal for Water Underfloor Heating 16 / 15 mm Pipe

Each board covers 0.72 sqm

The Extruded Polystyrene(XPS) Insulation - is known worldwide for exceptional long-term insulation performance on foundations, walls, roofs, underfloor and more.

(Minimum Order 50 boards)

This insulation board is designed specifically for use with water underfloor heating systems, very high compressive strength (30tonnes / m2), light weight, high efficiency and low cost make this thermal board an ideal choice when fitting heating on to a poorly insulated concrete or screed base and works excellently with water underfloor heating systems

Dimensions

The dimensions of each board are 0.72m2 (25mm x 1200mm x 600mm)

The boards have 200mm centres.

Installations

Panels must be installed onto existing suitable subfloors ie: solid concrete/screeded floors or suitable 18mm structurally sound wooden subfloors such 18mm exterior plywood

Key Features

• Covered by BBA and CE certified to meet with all the EU and UK standards.

• Worldwide respectful premium brand Styrofoam boards from Dow Chemical Co. (Listed in NYSE: DOW)

• The boards have 200mm centres, providing an even distribution of heat. This system is suitable for domestic as well as commercial applications

• High compressive strength, low moisture absorbance, excellent thermal performance.

• Fire protection Class euro E grade

• Lightweight and strong.

• Will last lifetime (50 years warranty)
