20mm Overlay Water Underfloor Heating XPS Grooved Cement Coated Panel for 16/15mm Underfloor Heating Pipe 150mm Spacing

(Minimum Order 50 boards)

DELIVERY IS USUALLY 1-2 WORKING DAYS.

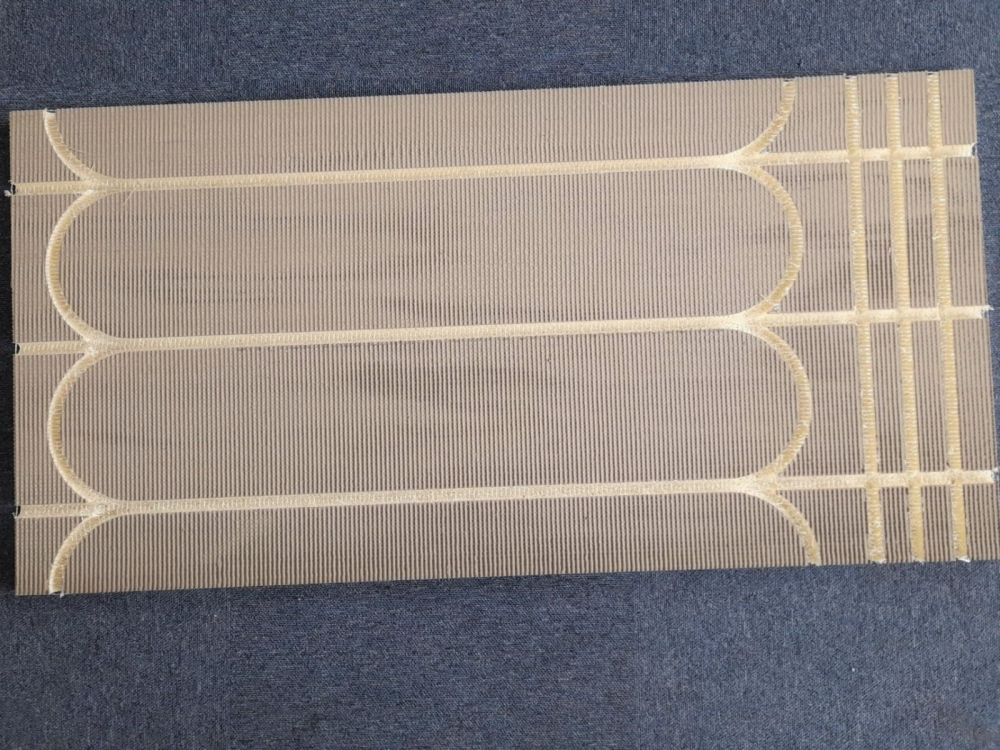

XPS 20mm Grooved Cement Coated XPS Panels

Ideal for Water Underfloor Heating 16 / 15 mm Pipe

Each board covers 0.72 sqm

The Extruded Polystyrene(XPS) Insulation - is known worldwide for exceptional long-term insulation performance on foundations, walls, roofs, underfloor and more.

This insulation board is manufactured from high density XPS 300kPa which is thermally insulating, lightweight, waterproof and faced with a reinforced cement coating. The panels provide a quick and easy solution for the placement of pipework for domestic and commercial underfloor heating applications. The lightweight, reinforced cement facing, provides a robust surface that is ideal for direct bonding of tiles.

Dimensions

The dimensions of each board are 0.72m2 (20mm x 1200mm x 600mm)

The boards have 150mm centres.

Installations

Panels must be installed onto existing suitable subfloors ie: solid concrete/screeded floors or suitable 18mm structurally sound wooden subfloors such 18mm exterior plywood

Key Features

• Covered by BBA and CE certified to meet with all the EU and UK standards.

• The boards have 200mm centres, providing an even distribution of heat. This system is suitable for domestic as well as commercial applications

• High compressive strength, low moisture absorbance, excellent thermal performance.

• Fire protection Class euro E grade

• Lightweight and strong.

• Will last lifetime (50 years warranty)
