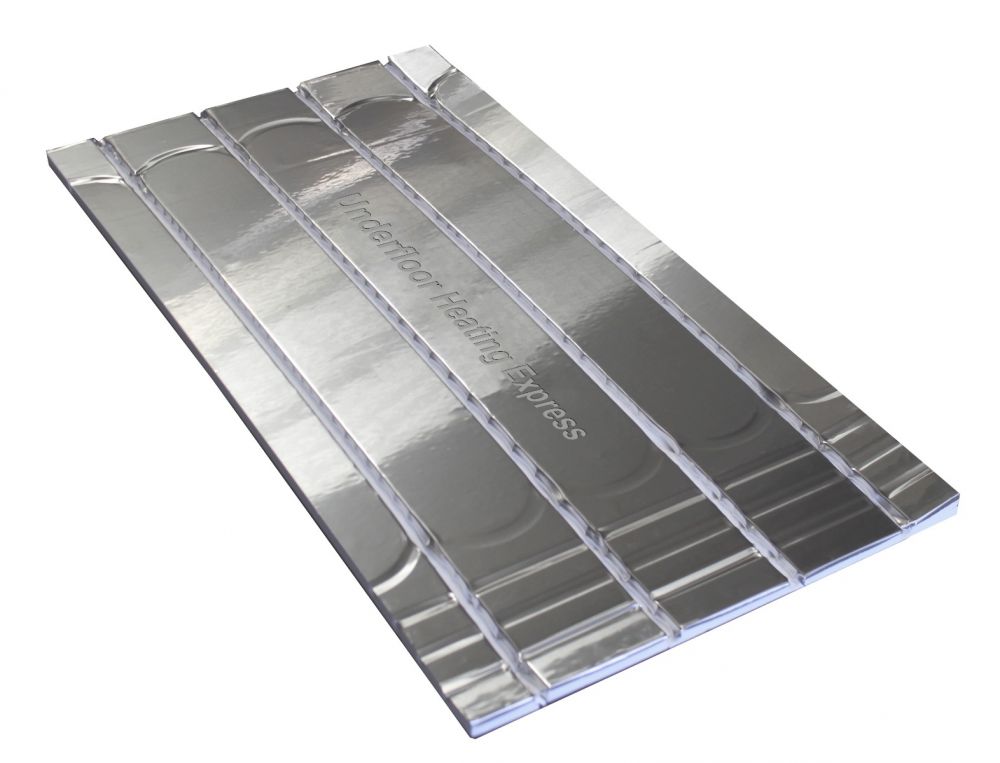

400KPA EPS 16mm Routed Panel for 12 mm Underfloor Heating Pipe – 120mm Centre(200 Microns Foil)

(Minimum Order 50 boards)

BASED ON QUANTITY OF BOARDS, YOUR ORDER WILL ARRIVE EITHER BY PARCEL, OR PALLETISED. IF PALLETISED. DELIVERY IS USUALLY 2 WORKING DAYS.

These 16mm thick routed boards are suitable for residential and commercial properties. They have a high tech aluminium foil covering to evenly distribute heat and reduce heat loss.

The panels are suitable for solid/ screeded floors, or suitable 18mm `marine' style plywood, chipboard, or similar. The 120mm spacing is designed to take 12mm pipes. The boards are suitable for tile covering.

• Expanded Polystyrene board (EPS)

• High density boards

• 16mm thick panels

• High tech aluminium foil covered

• 120mm centres

Dimensions

The dimensions of each board are 0.72m2 (16mm x 1200mm x 600mm)

Material: 400KPA Polystyrene( Fire retardant)

Maximum Pipe Loop Length: 80m(12mm pipe)

Pipe Spacing: 120mm

Guaranteed for: LIFETIME

Depth: 16mm

Length: 1200mm

Weight: 0.95kg

Width: 600mm

Aluminium Thickness: 200 Micron - Rapid Response

Heat output Under Tiles: 120w/m2

Heat output Under Wood, Laminate or Engineered: 100w/m2

Heat output Under Carpet: 80w/m2

Installations

The panels are suitable for solid / screeded floors, or suitable 18mm `marine' style plywood, chipboard and similar subfloors.
