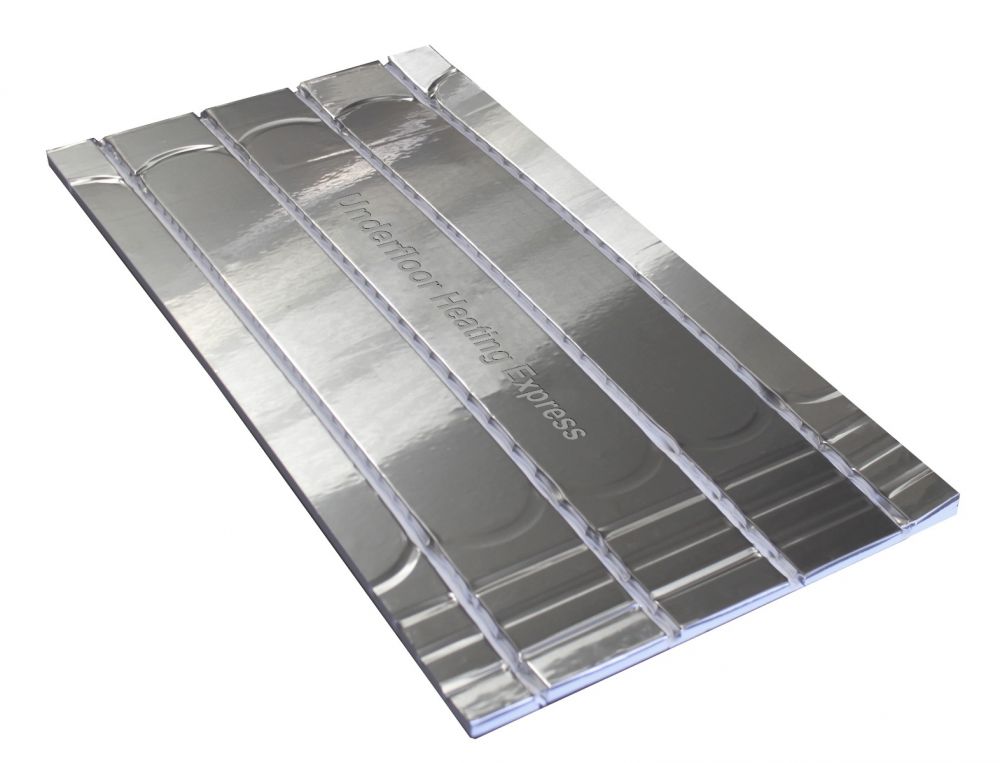

400KPA EPS 20mm Routed Panel for 16 / 15 mm Underfloor Heating Pipe – 150mm Centre (100 Micron)

(Minimum Order 50 boards)

BASED ON QUANTITY OF BOARDS, YOUR ORDER WILL ARRIVE EITHER BY PARCEL OR PALLETISED. IF PALLETISED. DELIVERY IS USUALLY 1-2 WORKING DAYS.

These 20mm thick routed boards are suitable for residential and commercial properties. They have a high tech aluminium foil covering to evenly distribute heat and reduce heat loss.

The panels are suitable for solid/ screeded floors, or suitable 18mm `marine' style plywood, chipboard, or similar. The 150mm spacing is designed to take 15/ 16mm pipes. The boards are suitable for tile covering.

• Expanded Polystyrene board (EPS)

• High-density boards

• 20mm thick panels

• High tech aluminium foil covered

• 150mm centres

Dimensions

The dimensions of each board are 0.72m2 (20mm x 1200mm x 600mm)

Material: 400KPA Polystyrene( Fire retardant)

Maximum Pipe Loop Length: 100m(16mm pipe)

Pipe Spacing: 150mm

Guaranteed for: LIFETIME

Depth: 20mm

Length: 1200mm

Weight: 0.95kg

Width: 600mm

Aluminium Thickness: 100 Micron - Rapid Response

Heat output Under Tiles: 120w/m2

Heat output Under Wood, Laminate or Engineered: 100w/m2

Heat output Under Carpet: 80w/m2

Installations

The panels are suitable for solid / screeded floors, or suitable 18mm `marine' style plywood, chipboard and similar subfloors.
