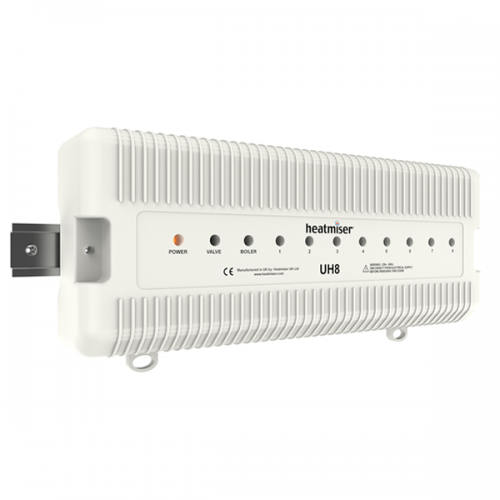

Heatmiser UH8 - 8 Zone 230v Wiring Centre

The Heatmiser UH8

 Up to 8 zones can be controlled from the UH8.

On board the UH8 are two heating time channels, each zone allows you to specify which time channel it should follow.

2 additional time channel connections are provided for hot water control or other auxiliary devices.

On demand from any zone, a 230v output is provided to switch the relevant zone actuator, underfloor heating pump and valve.

A volt free connection is supplied for the boiler, making it compatible with almost all types of boilers.

A simple slide switch makes zone 8 suitable for controlling a radiator zone.

When used for controlling radiators, zone 8 does not enable the underfloor heating pump, valve and boiler.

Up to 4 actuators can be connected to each zone.

Dimensions (LxHxD) 384x148x60mm
