Water Underfloor Heating Running Costs

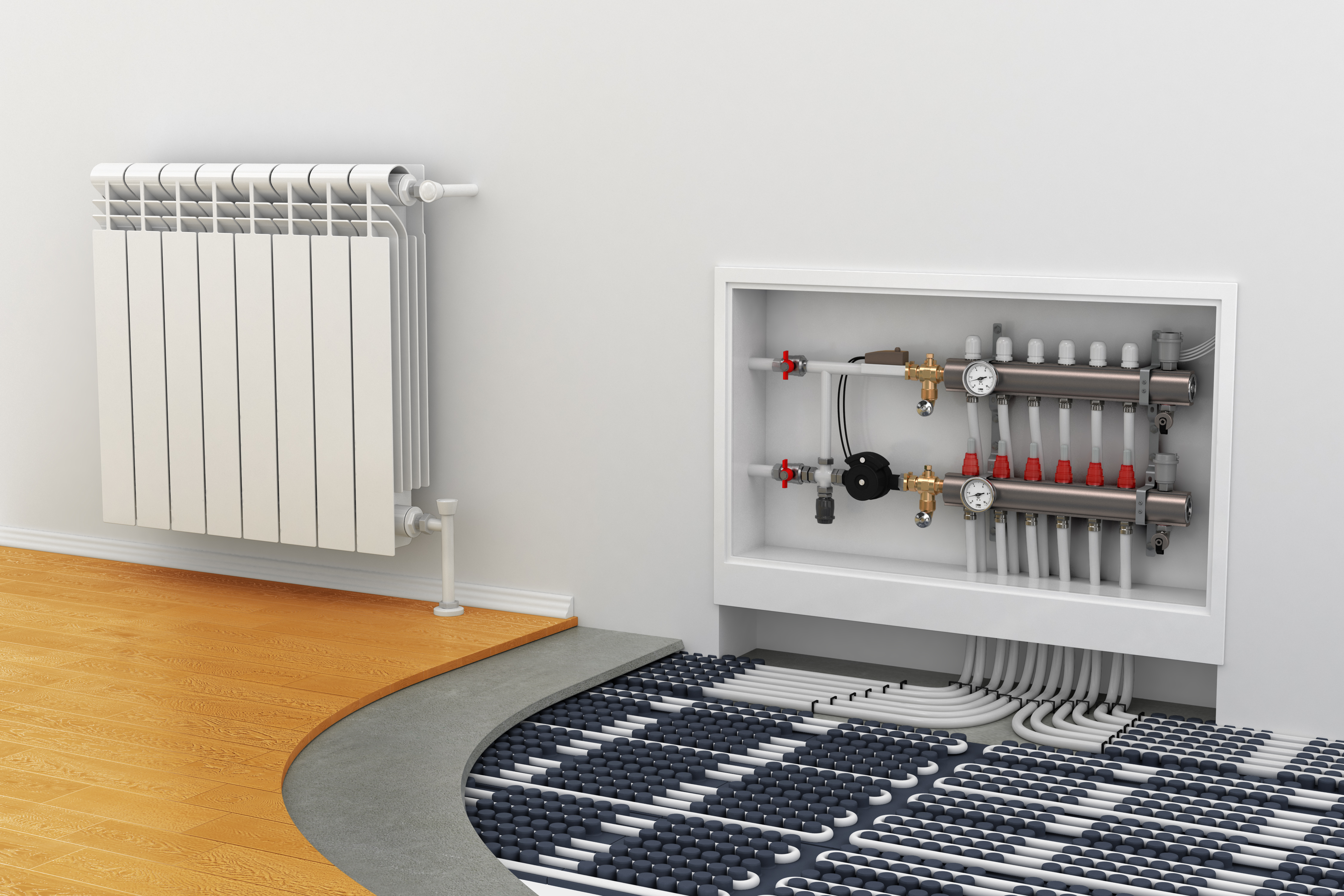

water UFH





Water Underfloor heating is usually more energy-efficient than warm water radiators or electric underfloor heating, so the running cost is lower.



This is because the heat emitted from an underfloor system is more evenly distributed than heat from a single radiator, so the system can use water at a lower temperature, It's usually between 27°C and 31°C

The running cost will also depend on a lot of other factors, including:

· How energy efficient your home is

· Room size

· Using time



 Please see the running costs table below:





Per Day

Per Month

Per Year

10㎡

£0.12

£3.6

£45

20㎡

£0.24

£7.2

£90

30㎡

£0.36

£10.8

£134

40㎡

£0.48

£14.4

£180

60㎡

£0.72

£21.6

£270

80㎡

£0.96

£28.8

£360

100㎡

£1.20

£36

£450

120㎡

£1.44

£43.2

£540

140㎡

£1.68

£50.4

£630

160㎡

£1.92

£57.6

£720

180㎡

£2.16

£64.8

£810

200㎡

£2.40

£72

£900

220㎡

£2.64

£79.2

£990

240㎡

£2.88

£86.4

£1080



Water Underfloor Heating Heat Output Tables



Underfloor Heating Heat Output– 12mm and 16mm Pipe



Pipe size: 16mm



Room Temperature

Pipe Spacing(mm)

Flow Temp(oC)

Output(W/m sq)

Floor Temp(oC)

18oC

150

40

54

24





45

68.5

25





50

83.5

26





55

99

28



200

40

48

23





45

62

24





50

75

25





55

89

26



250

40

43.5

22





45

56

23





50

68.5

24





55

81

25

21oC

150

40

44

26





45

59.5

27





50

74.5

29





55

90

30



200

40

40

25





45

54

26





50

67

27





55

81

28



250

40

36

24





45

49

25





50

61

26





55

73.5

27



Pipe size : 12mm





Room Temperature

Pipe Spacing(mm)

Flow Temp(oC)

Output(W/m sq)

Floor Temp(oC)

18oC

150

40

34

21





45

44

22





50

53

23





55

63

24



200

40

31.5

20





45

43.5

21





50

55.5

22





55

66.5

23



250

40

28.5

19





45

39

20





50

50

21





55

60.5

22

21oC

150

40

41

26





45

56.5

27





50

72

29





55

86.5

30



200

40

37

26





45

51

27





50

65

28





55

78

29



250

40

33.5

25





45

46

26





50

59

27





55

71

28
