Loose Underfloor Heating Cable Kit - 200W Per Sqm

Our system consists of a 230V 200w per square metre cable which can be rolled out and to fit any shape room. Within the cable is a thin 2.0 mm heating cable. The cable should be laid directly under the surface to be heated, taped down and then tiled over. You may wish to add self-leveling screed or cover it with a thin layer of tile adhesive to ensure that the surface is flat.

Cable spacing;

To achieve 100w output per sqm = 18cm

To achieve 150w output per sqm = 12cm

To achieve 200w output per sqm = 9cm

Use the table below to decide what length of cable you require

A choice of thermostats are also available, each thermostat has a temperature probe to fit under the floor to ensure your room is heated to the required temperature.

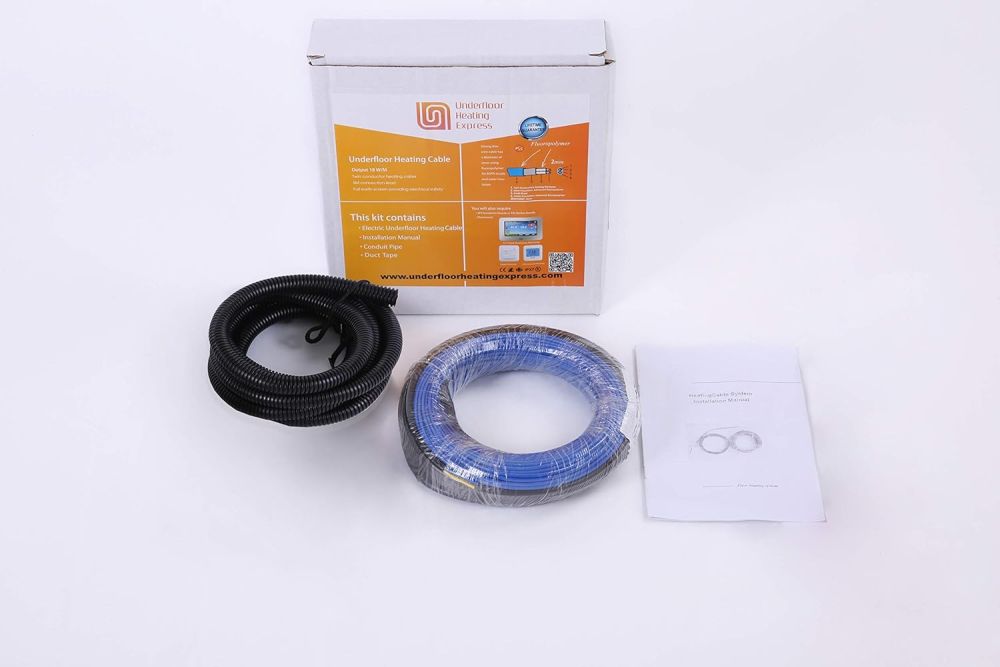

Included in kit:

  1. Selected cable length

  2. Conduit pipe 2 metre

  3. Tape x 1 roll (2cm*50m)

  4. Installation manual

  Included with thermostat:

 1. Floor probe lead 2.5 metre

 2. Installation manual

Technical Data

•Sizes available - 1.3, 1.8, 2, 2.6, 3.3, 4, 4.6, 5.3, 6, 6.6, 8, 9.33, 10.66, 12, 13.33, 16, 16.6, 18, 20, 21.6m²

• Output: 18W/m (-5% to +10%)

• Cable Diameter: 2.0mm

• Max. Ambient Temp: 30°C

• Min. Installation Temp: 5°C

• Rated Voltage: 230V

• Lead Wire Length: 2.5m

• Twin Conductor Heating Cable

• Conductor Insulation Fluoropolymer

• Outer insulation Fluoropolymer

• 50 Year Warranty

Used for:

Heating cable is ideal for Bathrooms, Kitchens, Lounges, Dining rooms and any other areas.

Key Features:

Heating cables utilises modern materials and installation techniques:

• Dual core heating cable technology allows single point connection

• Full earth screen providing electrical safety and peace of mind

• Emits Zero EMF (electromagnetic fields)

• Attached 2.5M connection lead allows connection from one end

• Easily installed on a sound sub floor such as concrete, tile backer boards and marine grade plywood

• Approved to EN60335-2-96 as required by the 17th Edition wiring Regulations, CE Certification and RoHS Compliant

• 50 Year Manufacturer's guarantee against manufacturing defects • Heat output 18W/m for primary heating or floor warming applications

• Low build height • Easy installation

• Suitable for wet areas

• Single point connection

• Durable construction Why buy me:

• CE certified to meet with all the EU and UK standards.
