Premium 2mm Thin UltraSafe Electric Underfloor Heating 150w Mat

****NEW*** 2mm Thin Electric Heating Mat 150 w/m2

Mat is 0.5m wide (eg. 10sqm mat = 0.5m x 20m linear length)

Our new system consists of a 2mm thin 150w per sqm cable mat which can be rolled out and cut to shape to fit any room. Within the mat is a thin 2mm heating cable which is pre-woven into a 500mm wide glass fibre mesh.  The mat should be laid directly under the surface to be heated, pressed down and then tiled over, you may wish to add self-levelling screed or cover it with a thin layer of tile adhesive to ensure that the surface is flat.

You can also purchase a choice of thermostats to complete the kit - standard, or touchscreen digital LCD thermostat, each has a temperature probe to fit under the floor to ensure your room is heated to just the right temperature.

 Click Heat Mat Installation Video to watch how to lay our XPS boards, Heatmats and Thermostats

The largest mat size is 12m2. When ordering 13m2 or higher, you will receive 2 mats to meet your required size.

To install, join mats parallel to the thermostat.

Example - 16m2 required = 2x 8m2

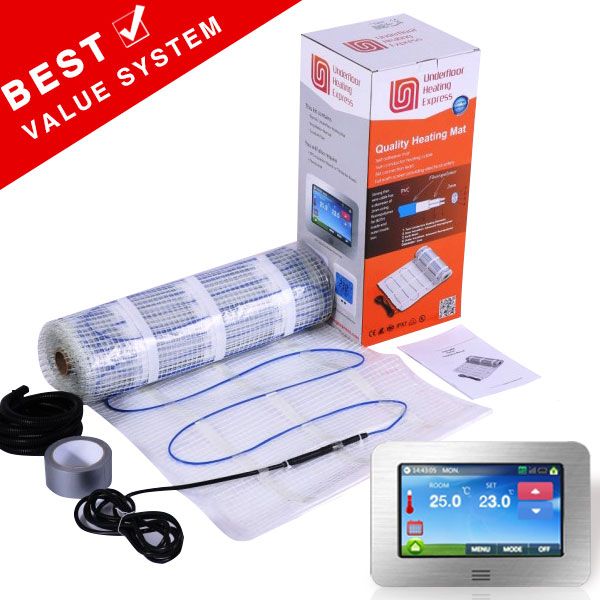

Included with mat:

 1. 2mm thin 150w/sqm Output Heating Mat

 2. Conduit pipe 2 metre

 3. Installation manual

Included with the thermostat:

 1. Floor probe lead 2.5 metre

 2. Installation manual

Technical Data

• Mat Sizes available in 1/1.5/2/2.5/3/3.5/4/5/6/7/8/9/10/11/12 m²
• Mat Width: 0.5m
• Output: 150W/m2 (-5% to +10%)
• Cable Spacing: 80mm (150W/m2)
• Cable Diameter: 2mm
• Max. Ambient Temp: 30°C
• Min. Installation Temp: 5°C
• Rated Voltage: 230V
• Lead Wire Length: 2.5m
• Twin Conductor Heating Cable
• Conductor Insulation Advanced Fluoropolymer
• Outer insulation Advanced  Fluoropolymer
• 50 Year Warranty

Key Features

• Dual-core heating cable technology allows single-point connection
• Full earth screen providing electrical safety and peace of mind
• Emits Zero EMF (electromagnetic fields)
• Attached 3M connection lead allows connection from one end
• Easily installed on a sound subfloor  such as concrete, tile backer boards and marine-grade plywood
• Super high tack adhesive on the entire mat underside allows roll and fix application in one go no curling corners or need for adhesive fixing strips
• Approved to EN60335-2-96 as required by the 17th Edition wiring Regulations, CE Certification and RoHS Compliant
• 50 Year Manufacturer's guarantee against manufacturing defects
• Heat output 150W/m² for primary heating or floor warming applications
• Low build height
• Easy installation of the pre-spaced heater cable
• Suitable for wet areas
• Single point connection
• Durable construction

 Click Heat Mat Installation Video to watch how to lay our XPS boards, Heatmats and Thermostats

Used for:

150w heating mat is ideal for Bathrooms, Kitchens, Lounges, Dining Rooms and most other areas.

Installation & Fitting

All our products can be installed by a competent DIY'er.

Please ensure that any works that are required by legislation to be carried out by a qualified/authorised person, are carried out by such a tradesperson.

Use a multimeter to test the heating mat before/during/after installation of the underfloor heating system.



Click Heat Mat Installation Video to watch how to lay our XPS boards, Heatmats and Thermostats
