Aluminium Spreader Plate for Underfloor Heating 15mm or 16mm Pipe 150mm spacing (Triple Loop) (Pack of 40) Min 3 Pack for free delivery
Less than 3 packs incur a delivery cost, please contact us on 02071832784 or email sales@underfloorheatingexpress for a quote.
Pack of 40 boards covers 15.80sqm

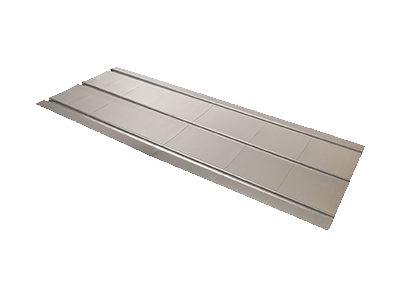

Aluminium heat spreader plates are 395mm x 1000mm x 0.4mm (groove depth: 16mm) diffiuser plates suitable for joist centers of 400mm.
Aluminum Triple Spreader Plate with grooves positioned 150mm apart to enable a homogenous heat transmission. The secure positioning of the pipe is enabled by a 1/2″ round groove running the length of the spreader plate.
Spreader plates are laid across traditional joists and fixed in place using a hand stapler.
Specifically designed to sit between standard joists @ 400mm centres to hold pipes and spread the heat in a joisted floor installation.
Plate Size: 1.0 Metre long x 395mm wide x 4mm.
The plates have 3 channels 150 mm apart, designed to hold 15 & 16mm heating pipes.
Coverage: 2.53 Plates / 1.0m²
For use with 15/16mm pipe for joisted floor applications. Spreads heat evenly. Fix with staples or nails.
