Brass Underfloor Heating Manifolds Complete Kit + 'A' Rated Brittherm pump-P1 Pump Pack (or Grundfos UPM3 Pump Pack)

2-12 Ports with Flow Metres and Temp Gauge
12/15/16/17/20 mm Pipe Fittings Available
BritTherm-P1 High Efficiency Pump(Black Colour)   or    Grundfos UPM3 Pump.

As low as £84.99 £70.82
Availability: In stock
SKU
brass-manifolds

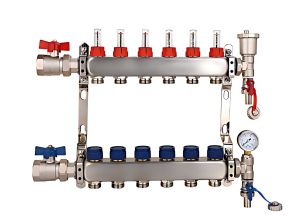

(Picture is for illustration only)

2-12 Ports Underfloor Heating Brass Manifolds Kit + BritTherm-P1 Pump Pack (or Grundfos UPM3 Pump Pack)

        Include the following:



  • 2-12 Ports Underfloor Heating Brass Manifolds - with flowmeters
    (included in "Brass Underfloor Heating Manifolds Complete Kit")

  • Ballvalves (with thermometer)
    (included in "Brass Underfloor Heating Manifolds Complete Kit")





  • 'A' Rated BritTherm-P1 Pump Pack or Grundfos UPM3 Pump
    (included in BritTherm-P1 Pump Pack")

  • Mixer Set Blending Valve (with pressure gauge)
    (included in BritTherm-P1 Pump Pack")



  • Euroconus connections to fit on the Manifolds
    (included in "Brass Underfloor Heating Manifolds Complete Kit")



2-12 Ports Underfloor Heating Brass Manifolds Kit

Technical Data (Brass Manifolds)

  • Usual working temperature 82 C
  • Max working temperature 105 C
  • Max working pressure 3 bar
  • Max test pressure 10 bar
  • Brasss Manifold comes with 5 year warranty



Key Features (Brass Manifolds)

  • Brass/ nickel plated
  • Compress fittings/ easy to install
  • Available with up to 12 ports
  • Supplied pre-mounted on installation brackets
  • Flow meters included
  • Valves on return manifold accepts a thermoelectric type head for remote control of each zone
  • Connections are euroconus and a range of fittings are available to suit most UK pipe sizes



BritTherm-P1 Pump Pack or Grundfos UPM3 Pump Pack (with Mixer Set Blending Valve)

Technical Data (Pump)

  • Temperature range: 35C - 65C
  • Max test pressure: 10 bar
  • UK Version, 230V
  • Pump comes with 2 year manufacturer warranty

Key Features (Pump)

  • BritTherm-P1 Pump  or Grundfos UPM3 Pump
  • Mixer Set Blending Valve
  • Thermostatic control the flow temperature of water to the underfloor heating pipe
  • Compression type connections for ease of installation
