Underfloor Heating Foil Mat Kit for Laminate / Wood

Be the first to review this product

Electric Foil Underfloor Heating Mat Kit for Under Wood and Laminate - various size available

Mat is 0.5m wide (eg. 10sqm mat = 0.5m x 20m linear length)

As low as £44.99 £37.49

Availability: In stock

SKU

AFMAT-KIT-140W

Step 1. Choose Mat Size

Thermostat Choice

No Thermostat Required

Standard Manual Dial (Non Wifi) + £29.99 £24.99

LCD Touchscreen (Non Wifi) + £35.00 £29.17

LCD Touchscreen (Wifi Controlled) + £59.99 £49.99

4.3' Colour Touch (Wifi APP Controlled) + £99.99 £83.32

Qty:

Details

HeatingMaster™ Electric Foil Heating Mat Pro 140 w/m2 + Thermostat (optional)

Mat is 0.5m wide (eg. 10sqm mat = 0.5m x 20m linear length)

Designed for use under laminate flooring and other floating floor applications

Our system consists of a 140w per sqm cable mat which can be rolled out and cut to shape to fit any room. Within the mat is a thin 1.0 mm heating cable which is pre-woven into a 500mm wide foil mesh. The mat should be laid directly under the surface to be heated, pressed down under the wooden/laminated floor.

The kit also comes with a choice of a standard, or touchscreen digital LCD thermostat, each has a temperature probe to fit under the floor to ensure your room is heated to just the right temperature.

Largest mat size is 12m2. When ordering 13m2 or higher, you will receive 2 mats to meet you required size.

To install, join mats parrellel to thermostat.

Example - 16m2 = 2 x 8m2

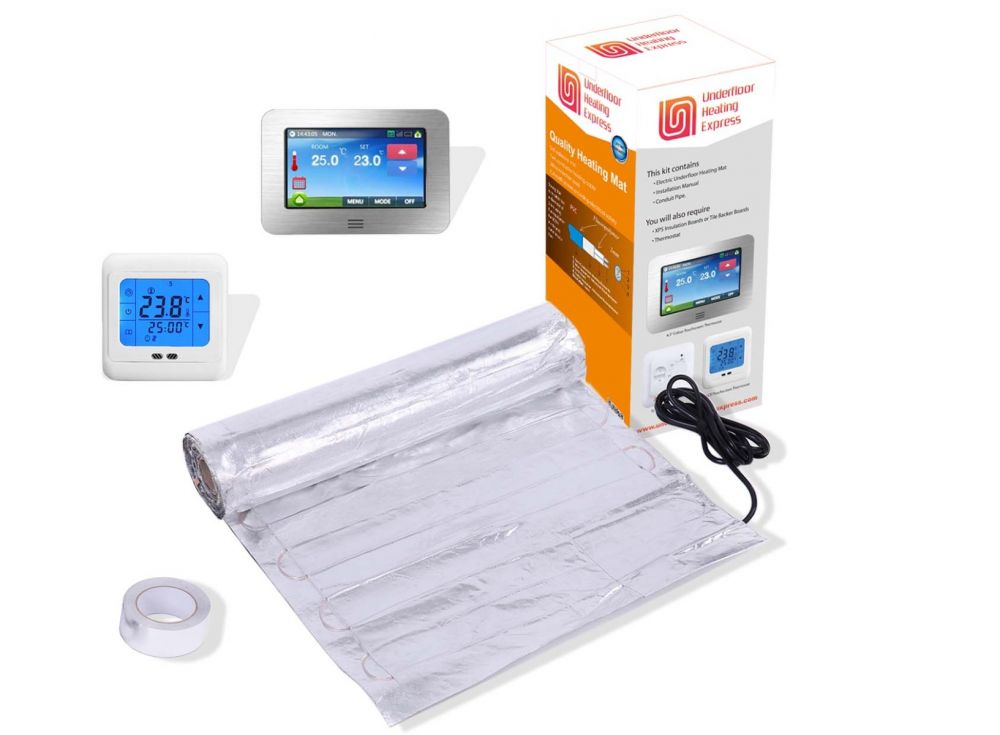

What included in the kit:

1. 140w Foil heating kit

2. Thermostat of choice (All Thermostats are programable)

3. Floor probe lead 3.0 metre

4. Roll of aluminium tape

Technical Data:

Sizes available in 1/1.5/2/2.5/3/4/5/6/7/8/9/10/11/12 m²

Width: 0.5 m

Output: 140W/m2 (-5% to +10%)

Cable Spacing: 50 mm (140W/m2)

Cable Diameter: 1.0 mm

Used for:

Foil heating mat is ideal for all area such as bedroom, bathroom, lounge, kitchen, dinning room, conservatories, under laminate and under wood floors.

Key Features:

Heating mat utilises modern materials and installation techniques:

Dual core heating cable technology allows single point connection
Full earth screen providing electrical safety and peace of mind
Emits Zero EMF (electromagnetic fields)
Attached 3M connection lead allows connection from one end
Easily installed under laminate and under wood floors
Approved to EN60335-2-96 as required by the 17th Edition wiring Regulations, CE Certification and RoHS Compliant
Lifetime Manufacturer's guarantee against manufacturing defects
Heat output 140W/m² for primary heating or floor warming applications
Low build height
Easy installation pre-spaced heater cable
Suitable for wet areas
Single point connection
Durable construction
50 year warranty
